Colamark

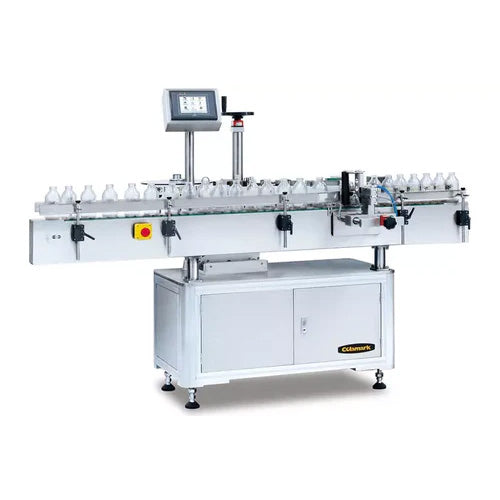

A107 Orientated Wrap-Around Labeling System
The A107 labeling system provides accurate wrap-around labeling for large, heavy bottles, using a pneumatic arm and 3-point rotation for precise alignment. It supports dual-label application and integrates various coding options like thermal transfer and inkjet with real-time peripheral management. Optional inspection and rejection features ensure quality control by detecting missing, incorrect, or misaligned labels and illegible date or batch codes.

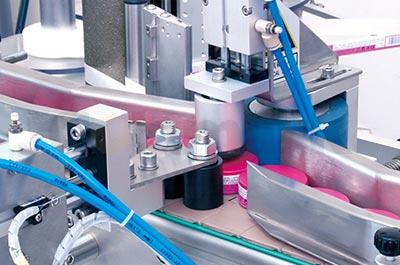

Orientated Wrap-Around Labeling System with Pneumatic Arm
- Particularly suitable for large heavy bottles
- Capable of putting two labels on one bottle
- Registration sensor ensures alignment accuracy
- Inspection and rejection functions for mistakes
Overview+
The A107 labeling system is designed for precise wrap-around labeling on large, heavy bottles and containers. It features a pneumatic arm and a 3-point rotation method to ensure accurate label alignment and registration, with the capability to apply two labels per bottle. The system supports various coding options, including hot stamping, thermal transfer, inkjet, and thermal inkjet, with integrated peripheral management and real-time alarm signals displayed on the control panel. Optional inspection and rejection functions detect missing, incorrect, or misaligned labels, as well as illegible date and batch codes for enhanced quality control.
Specifications +
- Model | A107
- Name | Orientated Wrap-around Labeling System with Pneumatic Arm
- Label Length | 10-200mm
- Bottle Size | Ф20~150mm
- Capacity | ≤80bpm
- Precision | ±0.5mm
- Weight | 400kg
- Electricity | 220VAC±10% 50Hz 1.3Kw
- Machine Dimensions | (L)2,000mm × (W)1,100mm × (H)1,450mm
