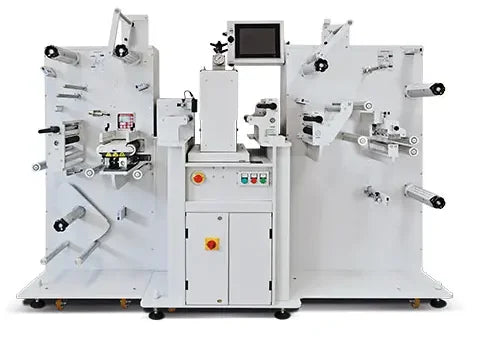

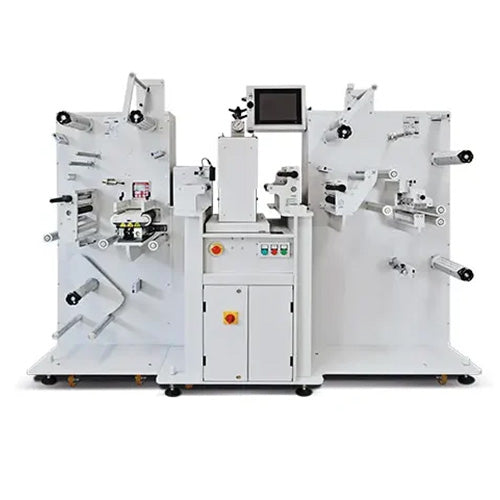

ARIES Semi-Rotary Label Finishing Machine

The ARIES Semi-Rotary Label Finishing Machine is a high-speed, fully digital system that die-cuts, laminates, removes waste, slits, and rewinds labels in a single pass at up to 30m/min. With a touchscreen PC interface, magnetic die plate for quick changeovers, and automated tension control, it offers precision, efficiency, and cost-effective label finishing for various industries.

CALL FOR PRICING

High Capacity Finishing

  • Printed and unprinted media mode
  • Industrial production volumes
  • Optimal for short/medium/long runs
  • Producing full-bleed labels will no longer be a nightmare.
  • Laminating adds durability to your labels and eliminates the need for special media.

Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

Overview+

ARIES Semi-Rotary Label Finishing Machine: Precision, Efficiency, and Versatility

The ARIES Semi-Rotary Label Finishing Machine is a high-performance offline system designed to die-cut and finish labels at speeds of up to 30m/min. Available in two die-cut widths (9.84″ and 13.78″), it features a fully digital workflow with an intuitive touchscreen PC interface, allowing users to easily control job settings and streamline production. Its flexible magnetic die plate enables quick and effortless changeovers, while the rotary module with a magnetic cylinder ensures precise alignment and accurate offset adjustments for flawless full-bleed label finishing.

Key Features:

✔ High-Speed Semi-Rotary Cutting – Die-cuts labels at up to 30m/min with superior accuracy

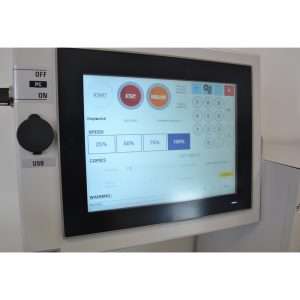

✔ Fully Digital Workflow – Touchscreen PC interface for easy job control and monitoring
✔ Magnetic Die Plate & Offset Adjustment – Ensures quick changeovers and precise cutting
✔ Versatile Media Handling – Supports printed and unprinted media without special material requirements

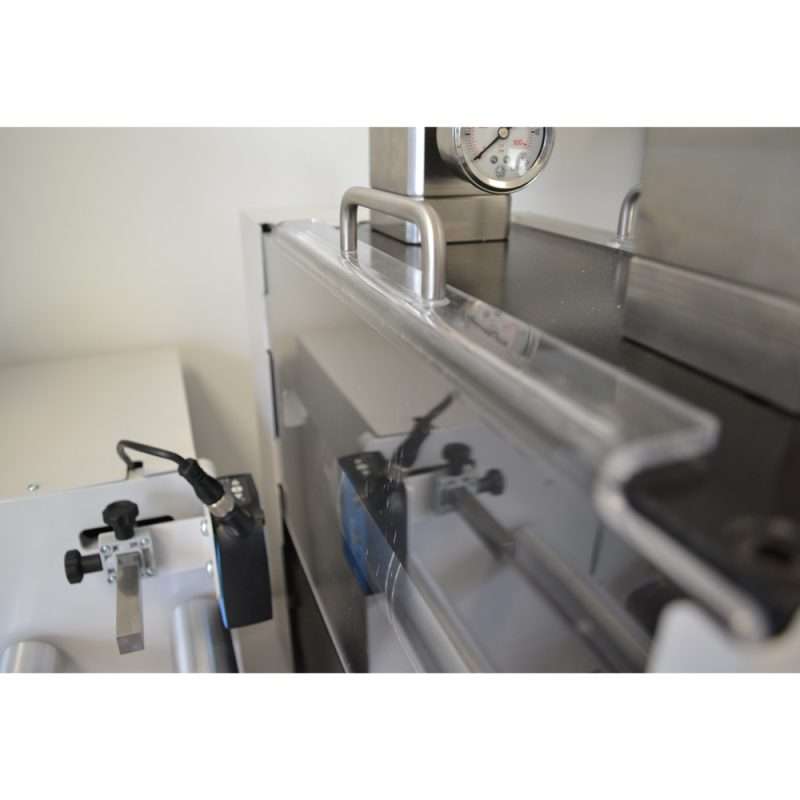

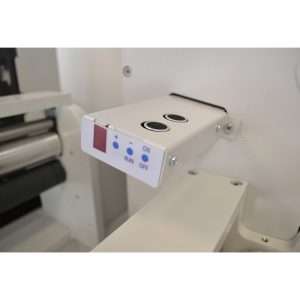

✔ Ultrasonic Tension Control – Automatically adjusts media tension for consistent, high-quality output
✔ Compact & Efficient – Loads large media rolls, reducing stock costs and minimizing roll changeovers
✔ ARIES Cutting Manager Software – Smart job management for optimized speed, accuracy, and waste reduction
✔ Remote Connectivity – Onboard PC with a 10” touchscreen powered by Windows 10 Pro for remote system access

Maximize Productivity with ARIES

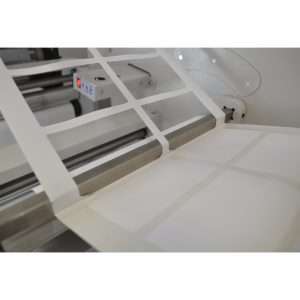

The ARIES Semi-Rotary Label Finisher combines lamination, die cutting, waste removal, slitting, and rewinding in a single pass, delivering precision and speed without compromising quality. Ideal for food, beverage, industrial, and chemical labels, it offers durability, operational efficiency, and seamless integration into any production workflow.

Why Choose ARIES?

With no need for special media or dies, the ARIES system simplifies full-bleed label production, ensuring cost savings and increased productivity. Its automated tension control, smart offset adjustment, and digital cutting management make it a versatile and reliable solution for high-volume label finishing.

Specifications +

  • SEMI ROTARY SPEED | Up to 30m/min
  • WEB WIDTH | 9.84" (ARS25PL), 13.78" (ARS35PL)
  • INPUT ROLL DIAMETER | 19.68"
  • LAMINATE | Economical, self-wound and supported laminate (on a liner).
  • DIE HEAD LATERAL ADJUSTMENT | +/- 2.36" (60mm)
  • MAX DIE CUTTING WIDTH | 9" (ARS25PL) 13" (ARS35PL)
  • MAX DIE CUTTING LENGTH | 14.17" (360mm)
  • CUTTING DIES | Flexible steel, from 5.11" (130mm) to 14.17" (360mm)
  • MAX FINISHED LABEL REWIND | 15.74" (400mm)
  • MAX WASTE MATRIX REWIND | 11.8" (300mm)
  • MINIMUM SLITTING WIDTH | 0.75" (19mm)
  • NUMBER OF SLITTING BLADES | UP TO 12 (ARS25PL) UP TO 15 (ARS35PL)
  • REGISTRATION SENSOR/MARK | Laser / 0.16" x 0.16" (4mm x 4mm)
