NeuraLabel

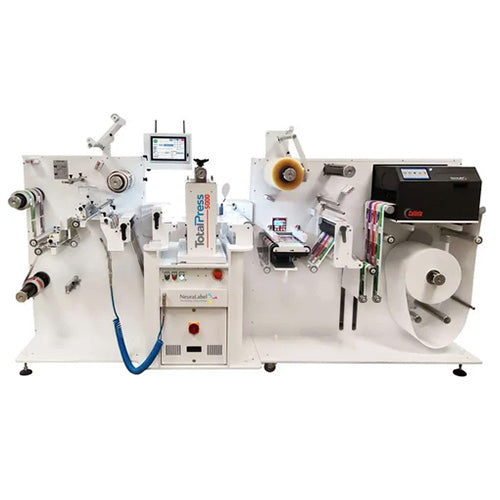

TotalPress 5000 Digital Label Press

The NeuraLabel TotalPress 5000 is a high-speed, all-in-one digital label press that prints, die-cuts, laminates, removes waste, slits, and rewinds labels at up to 90 feet per minute, delivering ready-to-use rolls for large-scale production. With seamless workflow integration, cost savings, and enhanced quality control, it’s the ideal solution for businesses looking to streamline in-house label production and increase profitability.

CALL FOR PRICING

High-Volume Inline System – Print and Finish Labels for Complete Flexibility In-House

  • High-volume production with extra-wide print path
  • Quality High-Resolution Printing Powered by Callisto
  • Durable UV-Resistant Pigment Inks
  • In-Line Print, Laminate, Die-Cut and Slit
  • Large Media Rolls for printing productivity
  • Finishing speed up to 18 inches/second
  • Affordable Flexible Magnetic Dies
  • Value Leader for in-house label production

Thumbnail
Thumbnail
Thumbnail
Thumbnail

Overview+

The NeuraLabel TotalPress 5000 is a high-speed, high-resolution digital label press that prints, die-cuts, laminates, removes waste, slits, and rewinds labels at speeds of up to 90 feet per minute. This all-in-one solution delivers ready-to-use rolls, making it ideal for industries requiring large-scale, flexible label production.

By bringing label production in-house, businesses can reduce costs, streamline inventory management, and gain greater creative control. Its web guide management system and user-friendly PC interface allow for quick adjustments and seamless workflow integration.

Print shops and private label companies use the TotalPress 5000 to offload short runs from expensive equipment or expand in-house label production, leading to faster turnaround times, improved quality control, and increased profitability. Designed for speed, precision, and efficiency, the TotalPress 5000 is the perfect solution for businesses looking to elevate their label printing capabilities.

Specifications +

  • Weight | 2244 lbs
  • Dimensions | 118.9 × 67.32 × 32.58 in
  • INK TYPE | NeuraLabel Durable Pigment Ink
  • PRINT RESOLUTION | 1200×4800 DPI Full Color
  • PRINT SPEED | Variable Speed Control Up to 18 inches per second (457 mm per second)
  • FINISHING SPEED | Up to 100 ft/min (up to 30 m/min)
  • CUTTING METHOD | Flexible steel – From 130 mm to 360 mm Repeat
  • LAMINATE | Self Wound or Linered
  • MEDIA TYPES | COMPATIBLE WITH A WIDE RANGE OF PAPER, POLYESTER, POLYPROPYLENE, AND VINYL LABEL STOCKS
  • MEDIA CORE DIAMETER | REQUIRES 3" (76.2MM) CARDBOARD CORE
  • PRINT WEB WIDTH | 12" (304 mm)
  • WEB WIDTH RANGE | 3.9" (100 mm) – 13" (330 mm)
  • MAX DIECUTTING WIDTH | 13" (330 mm)
  • MAX DIECUTTING LENGTH | 14.17" (360 mm)
  • MAX ROLL DIAMETER | 19.7" (500 mm)
  • MAX WASTE MATRIX REWIND | 11.8" (300 mm)
  • NUMBER OF SLITTING BLADES | Up to 15
  • POWER | 220-240V, 2 kW, 50/60 Hz
  • REGISTRATION SENSOR/MARK | Laser / 0.16" x 0.16" (4 mm x 4 mm)
