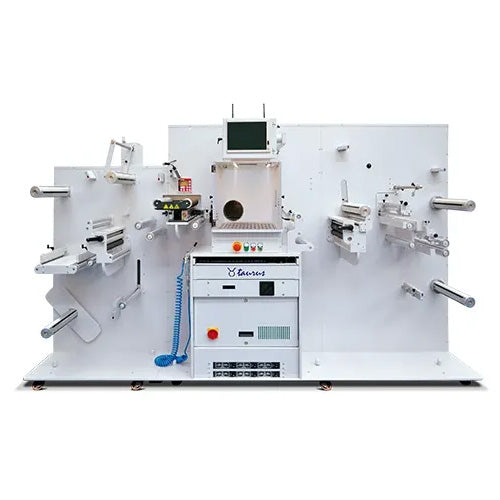

TAURUS - Laser cutting & laminating machine

The TAURUS Digital Laser Finishing System is a high-speed CO2 laser cutter that laminates, cuts, removes waste, slits, and rewinds labels in a single pass, eliminating the need for dies while ensuring precision and efficiency. With automated controls, a touchscreen interface, and optional UV varnish protection, it offers a cost-effective, eco-friendly solution for high-quality in-house label production.

CALL FOR PRICING

High-Speed Finishing

  • Printed and unprinted (for blanks) media mode
  • High Industrial production volumes
  • Optimal for short/medium/long runs
  • Producing full-bleed labels will no longer be a nightmare
  • Laminating adds durability to your labels and eliminates the need for special media

Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

Overview+

TAURUS Digital Laser Finishing System: Precision, Speed, and Efficiency

The TAURUS Digital Laser Finishing System is a high-speed, precision laser cutter designed for label finishing at up to 70m/min using a CO2 laser. Available in two widths—250mm (9.8") and 350mm (13.77")—it utilizes a three-axis scanner to enhance X, Y registration and depth control, allowing for variable power levels on the same label. Its touchscreen PC interface ensures easy job setup and retrieval, making in-house label cutting and finishing fast, cost-effective, and flexible.

Key Features:

✔ High-Speed Digital Cutting – Processes labels at up to 70m/min with CO2 laser precision
✔ Versatile Cutting Control – Adjust power levels for different cut depths on a single label
✔ Efficient Media Handling – Loads large 500mm (19.8") rolls, reducing stock costs and roll changeovers
✔ Built-in Web Guide & Ultrasonic Tension Control – Maintains perfect media alignment and tension
✔ Die-Free Cutting – Eliminates drag knives and dies, saving costs and setup time
✔ Eco-Friendly & Energy Efficient – Includes a fume extractor option, air cooling system, and built-in chiller

Maximize Productivity with TAURUS

The TAURUS system integrates lamination, digital cutting, waste removal, slitting, and rewinding in a single pass, streamlining production and reducing waste. The TAURUS Cutting Manager software optimizes speed, accuracy, and material use, ensuring greater efficiency and higher profits. For enhanced durability, an optional UV Varnish Module adds a protective layer against moisture, heat, and abrasion.

The TAURUS Digital Laser Finishing System is the ultimate cost-saving, high-performance solution for label finishing, offering precision cutting, simplified operations, and eco-friendly efficiency—all without the need for expensive die tooling.

Specifications +

  • LASER CUTTING SPEED | Up to 70m/min
  • WEB WIDTH | 9.84" (TRS25PL), 13.78" (TRS35PL)
  • INPUT ROLL DIAMETER | 19.68"
  • LAMINATE | Economical, self-wound and supported laminate (on a liner).
  • MAX FINISHED LABEL REWIND | 15.74" (400mm)
  • MAX WASTE MATRIX REWIND | 11.8" (300mm)
  • MINIMUM SLITTING WIDTH | 0.75" (19mm)
  • NUMBER OF SLITTING BLADES | UP TO 10 (TRS25PL and TRS35PL)
  • REGISTRATION SENSOR/MARK | Laser / 0.16" x 0.16" (4mm x 4mm)
  • SIZE | 110.23” x 29.13” x 65.35” (TRS25PL), 114.17” x 36.22” x 70.86” (TRS35PL)
